250~700mA Multi-current LED Driver(2×25W) with 1-10V & Switch Dimming Function

  • 250~700mA Multi-current LED Driver(2×25W) with 1-10V & Switch Dimming Function
  • 250~700mA Multi-current LED Driver(2×25W) with 1-10V & Switch Dimming Function
  • 250~700mA Multi-current LED Driver(2×25W) with 1-10V & Switch Dimming Function
Model No.︰HE1050-A
Brand Name︰HYTRONIK
Country of Origin︰China
Unit Price︰-
Minimum Order︰10 pc
Share on:

 Total 4 Related Items
1234Next

Product Description
Dimmable multi-current LED driver -- HE1050-A

LED current selection:
 This multi-current LED driver has covered the normal curren in the market. The current can be easily configured by choosing the correct combination of the DIP switches.  Warning: please make sure the correct current is selected before switching on the driver!!! (Over-current may cause serious damage to the LED, while under-current does not give the full light output of the LED.)

Extended RF dimming function:
An extended interface to our 1-10v dimming terminal. This extended dimming function is very convenient for RF and Zigbee dimming with external RF or Zigbeem odule. The external RF/Zigbee module is an user friendly design: Plug and Play.

PWM dimming:
PWM dimming is available upon customer's request, it is easily and quickly achievable by minor adjustment on the PCB layout and output terminal.

Switch-Dim:
  •  On/off: Short push(50-400ms) on the switch.
  •  Stepless dimming: Long push and hold ( > 400ms) on the switch.
  •  For fine tuning of light level: With every 2nd long push,the light level goes the opposite direction.
  • Built in with permanent memory: Light returns to the previous dimming level when switched off and on again, even at power failure.

Detailed Data Sheet:


Input voltage 220-240VAC  50/60Hz
Rated current                        0.25A (Max)
Rated power  2×28W (MAX)
Output voltage 60VDC (Max)
Operation frequency  320kHz f50kHz
Powor factor  0.90
Operation temperature Ta: 50     Tc: 75
Output current & Load  250mA(1-16pcs)  350mA(1-16pcs)
400mA(1-16pcs)  450mA(1-13pcs)
500mA(1-12pcs)  650mA(1-11pcs)
600mA(1-10pcs)  700mA(1-10pcs)
Max. Efficiency 86%
Abnormal protection Output short-circuit protection with auto-reset
Over-heat protection Over-heat protection with auto-reset
EMC standard EN56015 EN61547
Safety standard  EN61347-1 EN61347-2-13
Certification CE SEMKO EMC
Dielectric strength  Input—Output: 3750VAC
Input—Ground: 1800VAC
Output—Ground: 500VAC
All with 5mA/1min
Ip grade IP20 built-in type
Price Terms︰FOB Guangzhou
Payment Terms︰TT/PAYPAL
Packing︰CTN
Lead Time︰5~7 Working days
SKU︰1000
Standards Certificate︰CE SEMKO EMC
P.S.︰If not sure about anything on this page then why not ask us a question?

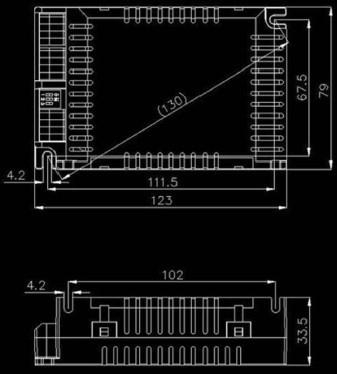

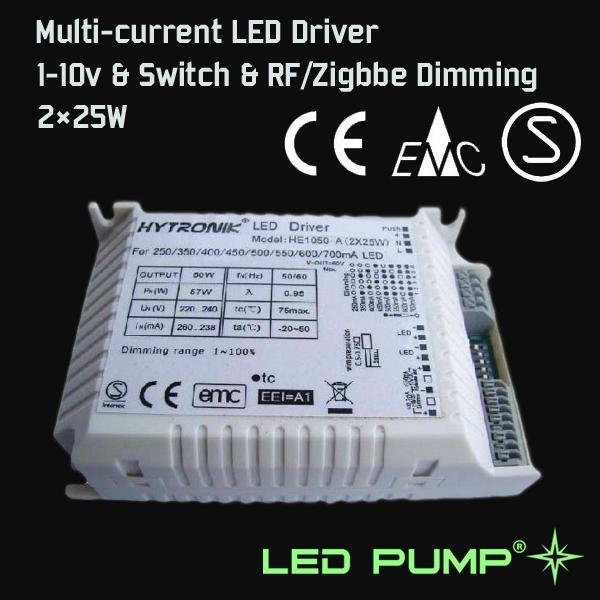

Product Image
